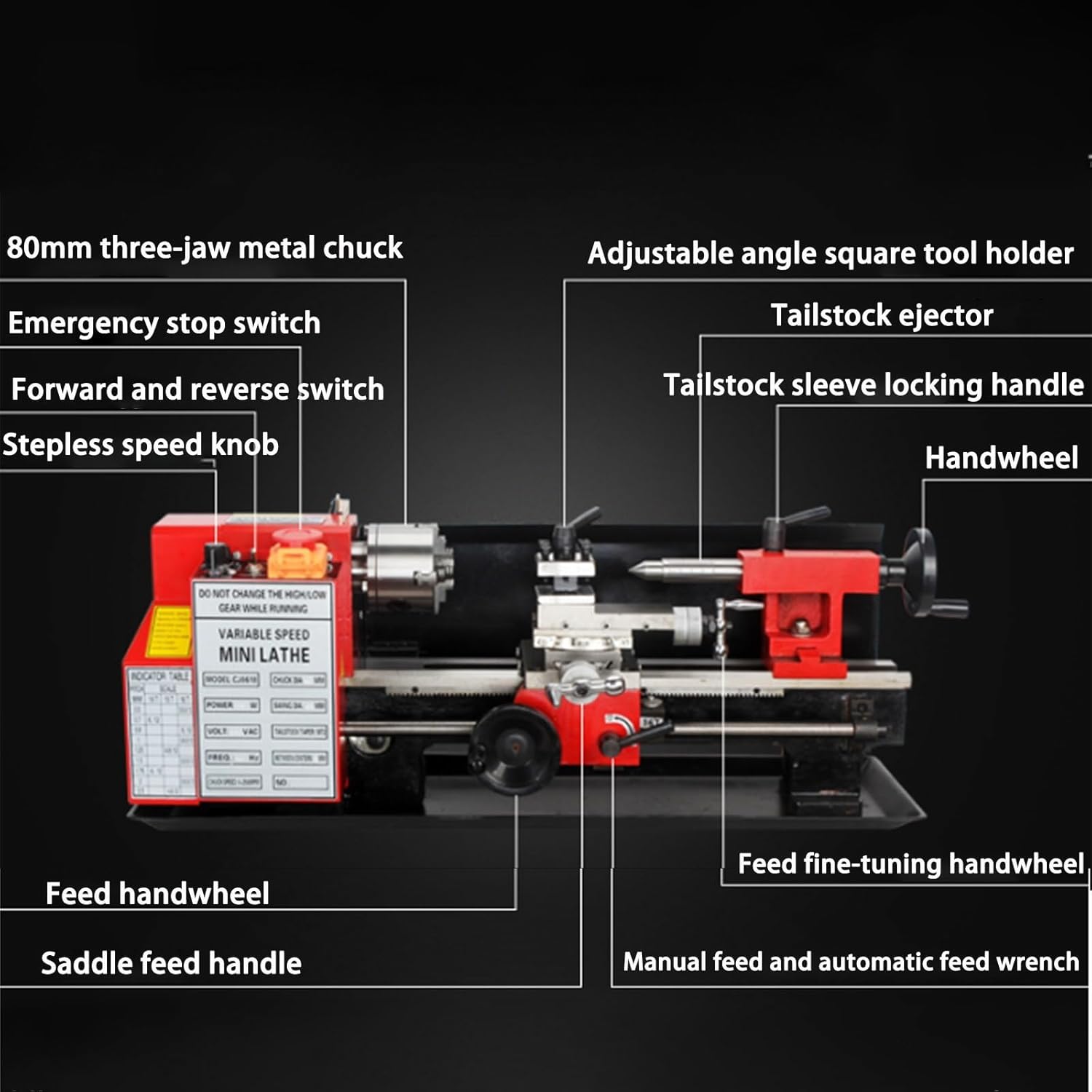

30.7x12.2x12.6in Micro Desktop Metal Lathe, Maximum Processing Length 13.78in, Stepless Speed Regulation, Household Desktop Small Metalworking Lathe, 550W 220V

Product parameters:Spindle accuracy: 0.01-0.02mmWorkpiece length for two ejectors: ≤350mmRotation diameter on bed: ≤180mmRotation diameter on horizontal support plate: ≤110mmSpindle inner hole taper: MT3Spindle through hole taper: 20mmTailstock sleeve taper: MT2Motor rated current: 4AMiddle slide stroke: 65mmTool holder slide effective stroke: 35mmSpindle speed (stepless electronic speed change): low speed 0~1100 rpm, high speed 0~2500 rpmVertical automatic walking to feed amount ：0.1~0.2mmMetric lathe thread range (10 minutes): 0.4~2.0mmMotor rated power (output): 550WVoltage/frequency: 230V/50HzChuck outer diameter: 80mmNet weight/gross weight: 40/45kg/88.18/99.2lbMachine tool size: 780x310x320mm/30.7x12.2x12.6inPackaging size: 810x330x330mm/31.89x12.99x12.99in

• Mini lathe: 30.7x12.2x12.6in stepless speed table metal lathe, spindle accuracy 0.01-0.02mm, spindle inner hole taper MT3, spindle through hole taper 20mm, tailstock sleeve taper MT2, middle slide travel 65mm, tool holder slide effective travel 35mm. Simple structure, easy installation and. This machine tool has a complete range of special accessories, and the lathe function can be upgraded and adjusted according to your later needs.
• Motor: 550W/230V/4A/50Hz permanent magnet DC motor transmits the speed change gear through the synchronous toothed belt to drive the lathe spindle speed (there is an adjustable gear on the back of the lathe).
• Small desktop metalworking lathe for home use: This lathe can be used to process internal and external cylindrical surfaces and end surfaces, with a maximum processing length of 13.78in, a maximum processing diameter of 4.7in, and a maximum rotation diameter of 7in, as well as drilling, reaming, boring, tapping, milling, knurling, etc. The spindle can be adjusted to the required speed according to the low speed gear of 0~1100 rpm/high speed gear of 0~2500 rpm to achieve the cutting effect.
• High precision: The spindle precision is 0.01-0.02mm, and the corresponding thread pitch is obtained by replacing the exchange gear, so that the lathe can use the 0.1~0.2mm longitudinal automatic tool feeding mechanism to turn the thread 0.4~2.0mm.
• Scope of application: Our metal lathe is suitable for families, small workshops, teaching, and DIY enthusiasts.
