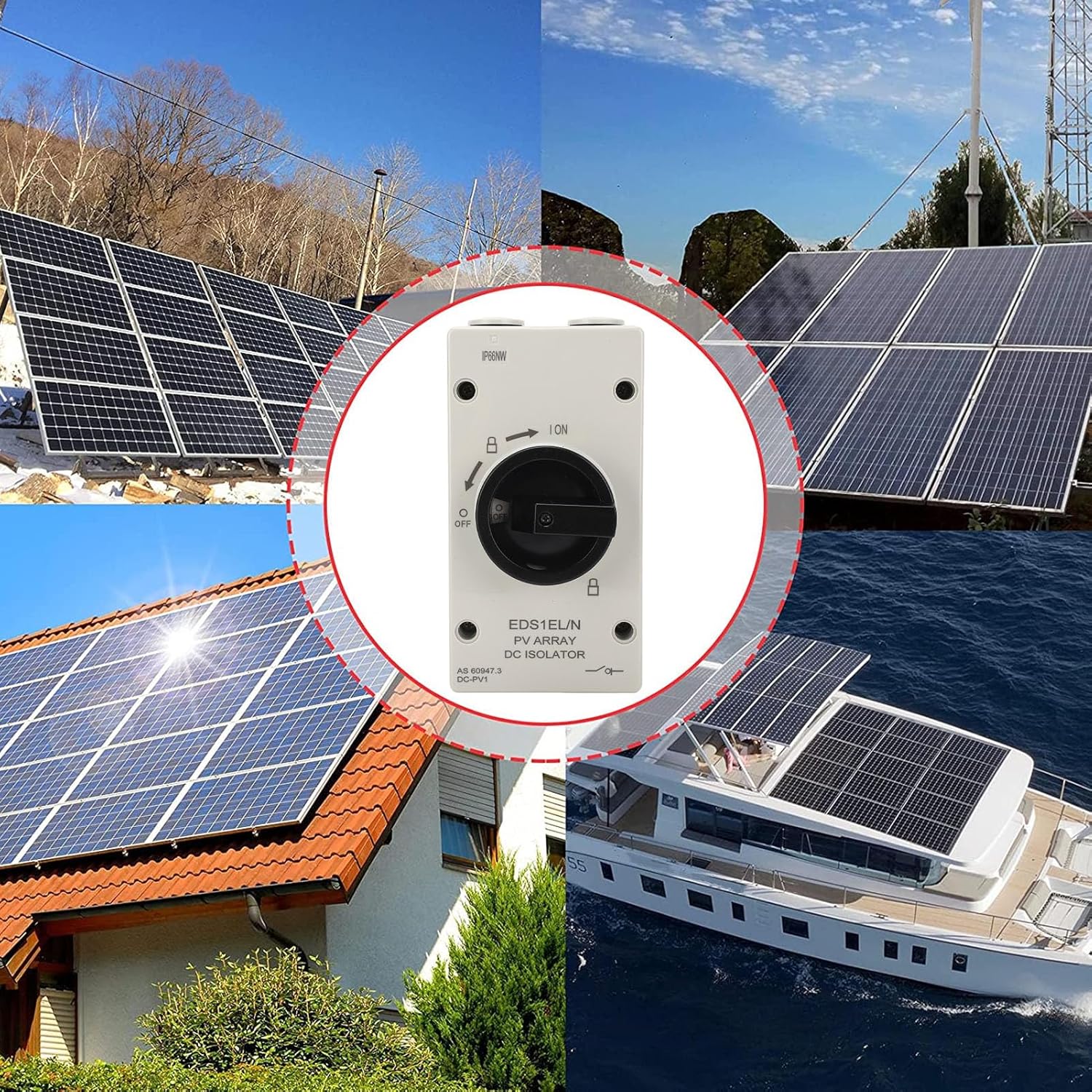

1000V 32A IP66 PV DC Isolator Switch Solar Disconnect Switch for Solar Power System RV Photovoltaic Switch
Product details
| Management number | 210755487 | Release Date | 2026/04/02 | List Price | $20.74 | Model Number | 210755487 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Item Type: PV DC Isolator SwitchMaterial: PC Grade: IP66NWFlame Retardant Grade: UL94V-0Standard: IEC/EN 60947-1 IEC/EN 60947-3Rated Voltage: 1000VRated Current: 32A (40℃), 29A (60℃)Uimp (Rated Impulse Withstand Voltage): 8KVUi (Rated Insulation Voltage): 1500VEnvironmental Temperature: -40℃ to +85℃packing list:1 x PV DC Isolator Switch4 x Screw Cover
- QUICK RESPONSE: Switch knob has three lockable positions to prevent misoperation. Switching mechanism adopts energy storage spring, can quickly achieve switching. The maximum on off switching time is less than 5ms.
- FLEXIBLE INSTALLATION: Wall mounted design, without the need for shell installation, this photovoltaic isolator is flexible to install and adapt to to different specifications of cable joints or connectors.
- ARC EXTINGUISHING: Adopting arc extinguishing method of magnetic arc extinguishing and arc extinguishing grid arc extinguishing, this PV DC disconnect switch could effectively arc.
- MULTIPLE USES: Widely used for solar power system RC, boats, on grid solar system, off grid living supplies, household solar systems, commercial solar systems.
- HIGH SAFETY: Featuring IP66 box design, using UL94V 0 PC flame retardant material, this isolator switch is highly for use, with sufficient internal space and good heat dissipation effect.
| Color | Popular |
|---|---|
| Model | WALFRONTdfo58pt91i |
| Wattage | 32000 watts |
| Terminal | Screw |
| Brand Name | Walfront |
| Unit Count | 1.0 Count |
| Switch Type | Temperature Switch |
| Circuit Type | parallel |
| Contact Type | Normally Open |
| Manufacturer | WALFRONT |
| Actuator Type | Isolator |
| Material Type | Polycarbonate |
| Mounting Type | Wall Mount |
| Connector Type | Screws |
| Control Method | Touch |
| Current Rating | 32 Amps |
| Item Type Name | Solar Panels |
| Operation Mode | Off |
| Number of Items | 1 |
| Contact Material | Stainless Steel |
| Operating Voltage | 1000 Volts |
| Specification Met | Iec/En 60947-1 Iec/En 60947-3, Ip66 |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP66 |
