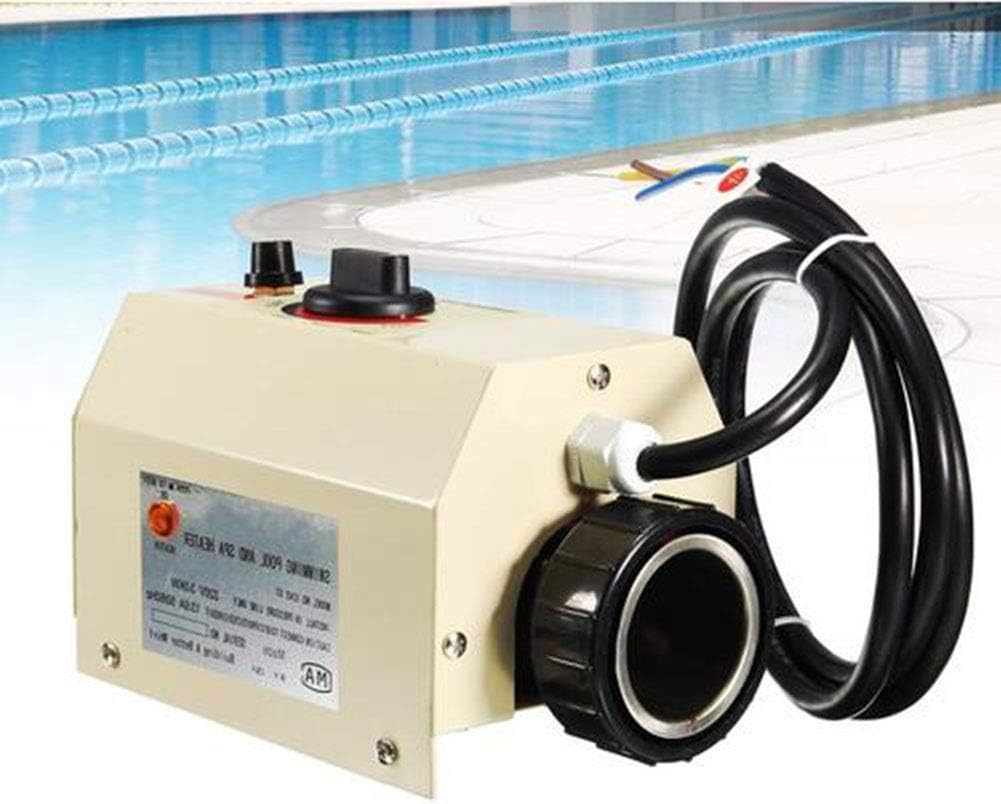

TOPCHANCES 3KW Electric Swimming Pool Heater Water Thermostat SPA Bath Heater Intelligent Constant Temperature for Swimming Pool and SPA -220V 50HZ

Installation Notes : 1.Important coasts thermostat outlet can not be fitted to valves or check valves on pipes in the middle of the tub or tub. Physical facilities : WARNING Never plug any inlet or outlet at both ends of the thermostat. When the thermostat is running, the water must flow from the inlet and out of the outlet. When the thermostat is installed, the center line of its inlet must be aligned with the centerline of the pump outlet or the centerline of the pipe and should be used with the shortest distance and the least number of corners. The thermostat inlet and outlet itself has a union, Joints, and bonding them to the pipe, to be firmly and then hand and the thermostat on the other half of the tightening, the system pipes, pumps and thermostats must be installed to ensure that the drainage when the internal water can be clean, that can not have Water pipes. 2.The operation of the coasts thermostat is fully automatic, and when the thermostat knob is rotated clockwise to the proper position, the heating indicator lights up and the thermostat is operated for a period of time to maintain the bath corresponding to the thermostat knob .The temperature of the position; when the thermostat knob counterclockwise to the appropriate position when the heating will stop, heating indicator light off. When the system is running for a long time, the thermostat inside the thermostat will keep the water temperature at a

• &#12304 Designed as Water Thermostat not Water Heater &#12305 This is designed specifically for the hot tub, the thermostat is installed in the pipeline jacuzzi. When adding hot water bath, start the pump, the thermostat automatically heat insulation work, so the water temperature bath maintained at 39 degrees Celsius, give your Jacuzzi to create a more comfortable environment .
• &#12304 Intelligent Self-test System &#12305 Comprehensively monitor the operating status of the system, and quickly make corresponding judgments and displays, so as to avoid the occurrence of faults such as dry water in the absence of water, and it is easier for the user or maintenance personnel to judge and maintain the fault.
• &#12304 Automatic Water Thermostat &#12305 Automatic heating thermostat will first reach the preset temperature, then stop working until the temperature dropped a few degrees, the thermostat automatically turns on.
• &#12304 Automatic Power Off, Safe and Reliable &#12305 Ultra-high temperature protection switch and reset button of the Water Heater Thermostat.Ultra-high temperature (over 49 °C), ultra-high temperature switch will automatically trip (power off).The water heater thermostat can be maintained within a temperature not exceeding 40 °C (104 °F) range.
• &#12304 Easy to Install and Disassemble &#12305 The swimming pool thermostat good interior circulation, not dross, easy removal.
